Product Description:
Hot plate magnetic stirrer is a laboratory instrument used for liquid mixing. Heating magnetic stirrer is mainly used to stir or heat and stir low-viscosity liquids or solid-liquid mixtures at the same time. Its basic principle is to use the principle of magnetic field that like charges repel and opposite charges attract, and use the magnetic field to push the magnetic stirrer placed in the container to rotate in a circle, thereby achieving the purpose of stirring the liquid. In conjunction with the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, maintaining the temperature conditions required by the experimental conditions, and ensuring that the liquid mixing meets the experimental requirements.
Product Specifications:
|
Laboratory Hot Plate Magnetic Stirrer |
|||
|
Model |
85- 1 |
78- 1 |
79- 1 |
|
Speed range |
0-2000rpm/min Stepless speed adjustable |
0-2400rpm/min Stepless speed adjustable |
0-2400rpm/min Stepless speed adjustable |
|
Temperature range |
Not heating |
Heating, not constant temperature |
Heating, not constant temperature |
|
Heating power |
/ |
200W |
200W |
|
Max capacity |
1000ml |
||
|
Working size |
Φ120mm |
||
|
Voltage |
AC220V 50Hz/ 110V 60Hz |
||
|
Package size |
66×26×39CM( 10 sets) |
67×27×42CM(8 sets) |
57×32×49CM(6 sets) |
|
Weight |
14.5KG |
17KG |
16KG |
|
Model |
magnetic stirrer 85-2 |
85-2A |
|
Max capacity |
1000ml |
|
|
Speed range |
0-2400rpm/min(Stepless speed adjustable) |
|
|
Voltage |
AC220V 50Hz/ 110V 60Hz |
|
|
Temperature range |
LED temperature control |
LED temperature and speed control |
|
Heating power |
300W |
300W |
|
Working size |
Ф120mm |
Φ120mm |
|
Package size |
57×32×49CM(6 sets) |
57×32×49CM(6 sets) |
|
Weight |
17KG |
17KG |

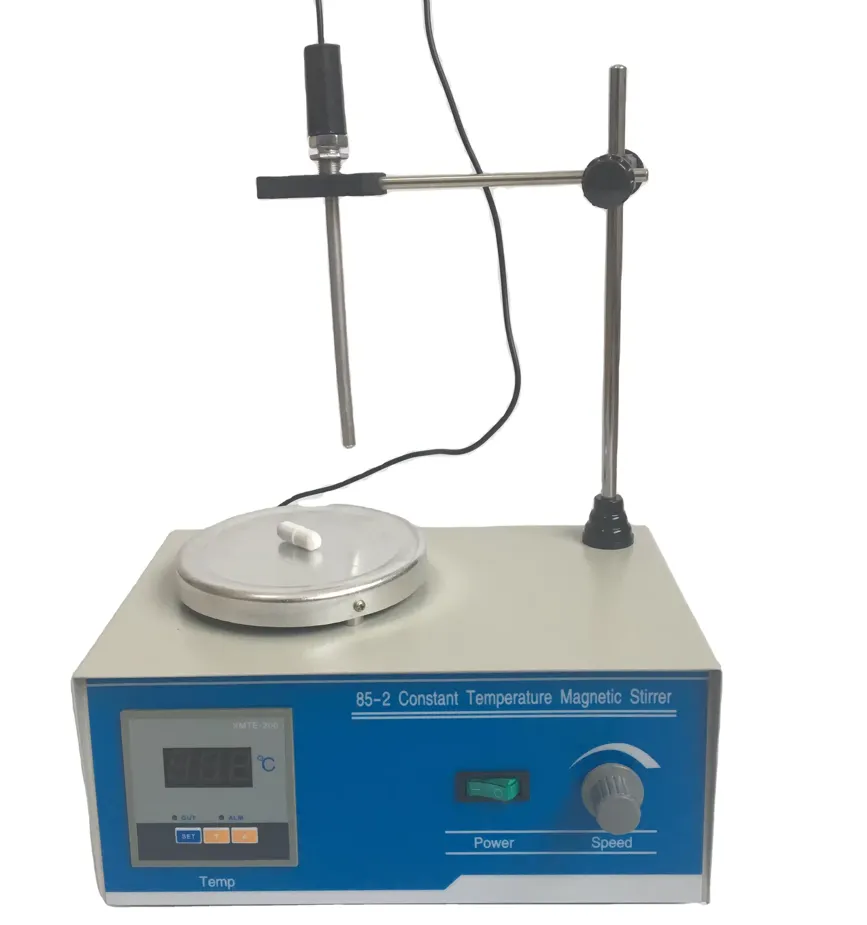

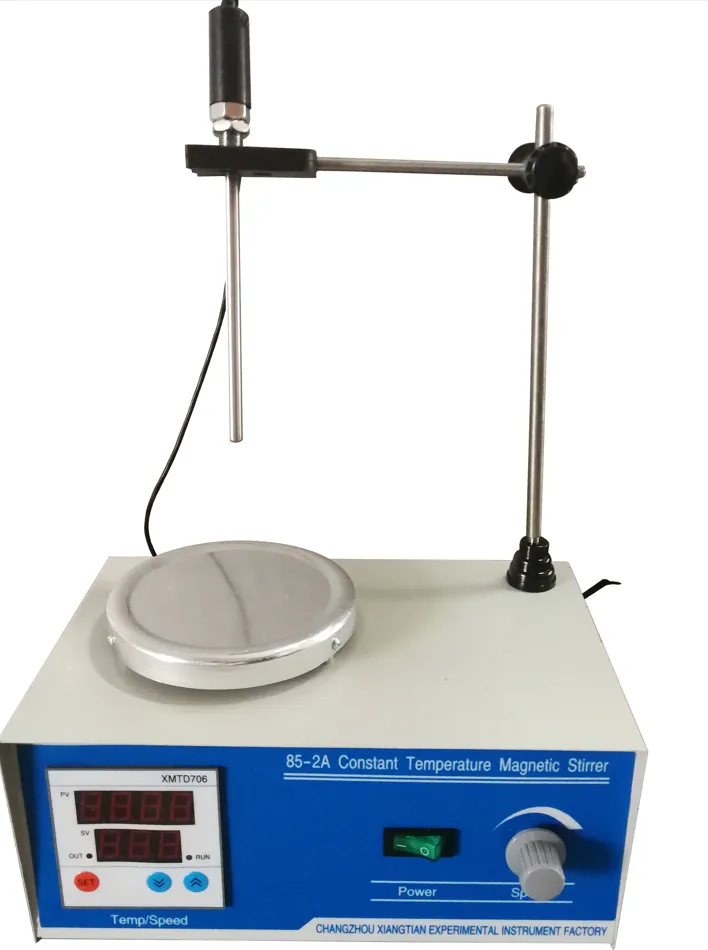

Product Pictures:
Magnetic Stirrer With Heating Working Principle:
Using the property of magnetic materials that like charges repel each other, the magnetic stirrer is driven to rotate by constantly changing the polarity of the two ends of the base, and the sample is driven to rotate by the rotation of the magnetic stirrer to mix the sample evenly; the sample is heated by the bottom temperature control plate, and the sample is heated evenly with the rotation of the magnetic stirrer to reach the specified temperature; the heating power is adjusted to make the heating speed controllable, so as to be applicable to a wider range of sample processing processes.
